Double Spindle Winding Machine Manufacturers

Welcome to Double EE Electro Controls E-122, Dilshad Garden Industrial Area, Delhi - 110095 +91 9891623354

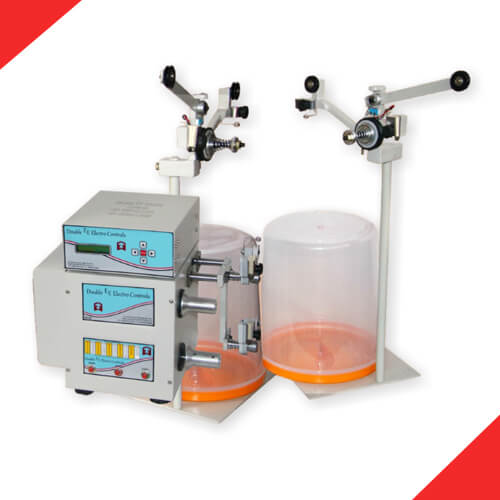

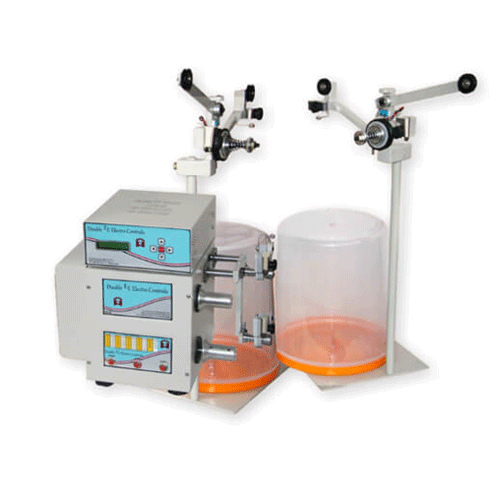

Model No : (E - 901)

TECHNICAL SPECIFICATIONS
NO OF SPINDLE	TWO SPINDLE SIDE LOADING TYPE
WINDING WIDTH	0 to 99.9 mm
WIDE DIA / GUAGE	0.07 TO 0.50 MM / 45 TO 25 SWG
WINDING SPEED	300 RPM TO 6000 RPM
BOBBIN SWING DIA	75 mm Max
WINDING MOTOR	0.25 HP, PMDC 180 VDC
TRAVERSE TYPE	H.S.S LEAD SCREW WITH BOX NUT
OPERATING VOLTAGE	1 PH 230 V AC, 50 HZ
