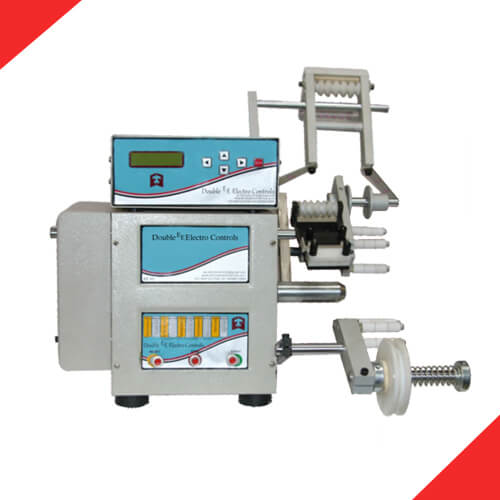

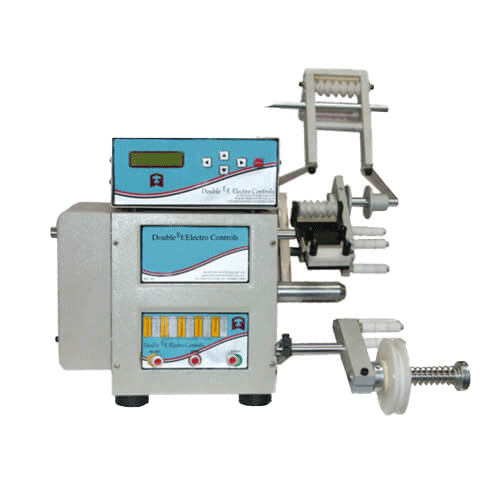

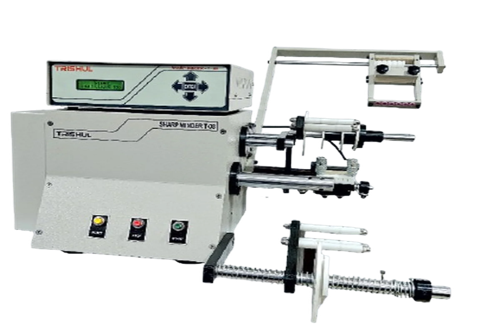

SMPS COIL WINDING MACHINE
Home
Products
TECHNICAL SPECIFICATIONS
NO OF SPINDLE
SINGAL SPINDLE SIDE LOADING TYPE
WINDING WIDTH
0 TO 139.9 MM
WIDE DIA / GUAGE
0.07 TO 0.71 MM / 45 TO 25 SWG
WINDING SPEED
300 RPM TO 4000 RPM
BOBBIN SWING DIA
120 MM MAX
WINDING MOTOR
0.5 HP, PMDC 180 VDC
TRAVERSE TYPE
H.S.S LEAD SCREW WITH BOX NUT
OPERATING VOLTAGE
1 PH 230 V AC, 50 HZ
ALONG WITH
MARGIN TAPE ATTACHMENT MAIN TAPE ATTACHMENT
INDIAN
